SCREW PRESS – Multi-Disk Sludge Dewatering Machine
Smart. Compact. Energy-Efficient
The next-gen solution for industrial and municipal sludge dewatering.
Key Highlights:
✔️ Extremely Low Energy Consumption
✔️Fully Automatic, Continuous Operation
✔️Clog-Free & Self-Cleaning Design
✔️ High Resistance to Oily & Fibrous Sludge

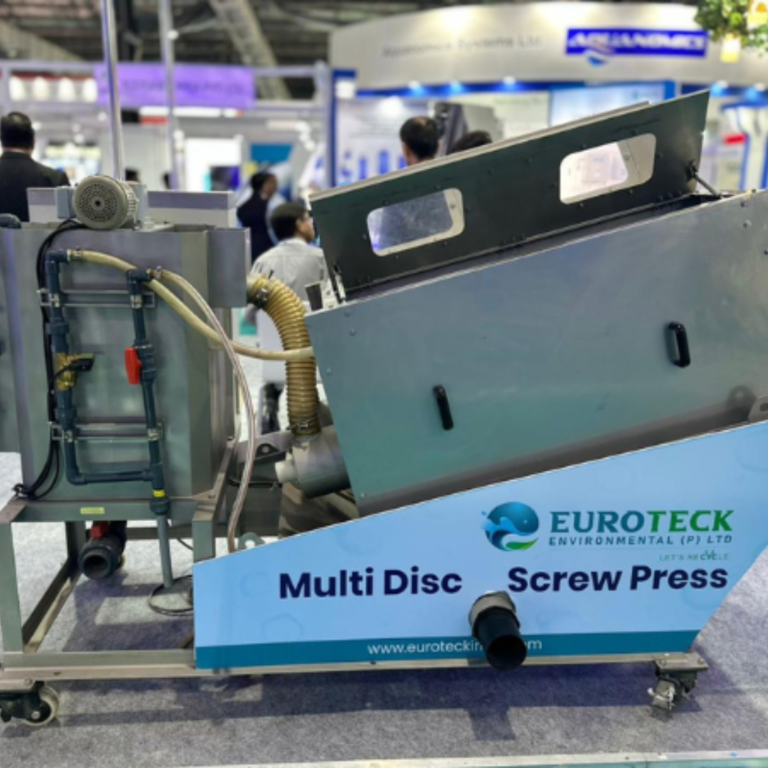

What is Screw Press?
The Euroteck Screw Press is a Multi-Disk Sludge Dewatering Machine that combines conditioning, thickening, and dewatering into one compact, continuous system. It runs automatically and delivers reliable performance across a wide range of sludge types, achieving up to 22–25% outlet solids consistency (depending on sludge characteristics and operating conditions).
By eliminating the need for separate thickening tanks or conventional filter presses, this system helps reduce footprint, manpower, water usage, and operating costs.
“Modern sludge handling made simple and sustainable.”
Key Features & Benefits
Low Energy Consumption: Designed for efficient, cost-effective operation.
Clog-Free & Self-Cleaning: Handles oily and fibrous sludge with minimal blockage risk.
Fully Automatic Control: Minimal operator involvement required.
Minimal Water Use: Washing requires only 0.2 bar water pressure.
Low Noise & Low Odour: Cleaner and quieter plant environment.
Low Manpower Requirement: Reduced labour and supervision needs.
Compact Footprint: Saves space and simplifies installation.

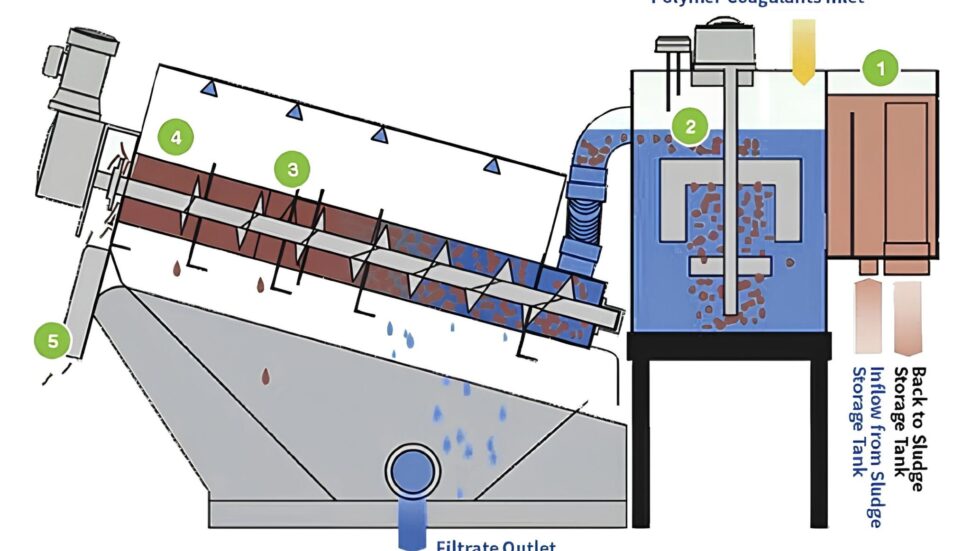

How It Works
5-Step Dewatering Process – Simple & Effective
- Flow Control Tank
Precisely feeds sludge into the flocculation tank, returning excess to storage. - Flocculation Tank
Polymer is mixed with sludge to form flocs ideal for dewatering. - Thickening Zone
Initial filtration begins as water separates from sludge inside the cylinder. - Dewatering Zone
As screw pitch and ring gaps reduce, pressure increases and sludge thickens. - End Plate
Final compression removes moisture, producing up to 25% solid sludge cake
